  Digital Cable Box Hook Up

HD Digital cable box with HDMI output to HDTV. Using an HDMI cable connection from cable box to HDTV ensures an all digital hook up. HDMI carries both video and audio all in one cable. HDMI can carry 480, 720 and 1080 video resolution and up to 8 channels of audio. So HDMI can be used for High Definition TV shows.

Most HDTVs have two, three or even four HDMI inputs so you can hook up another device which outputs HDMI such as a DVD recorder.

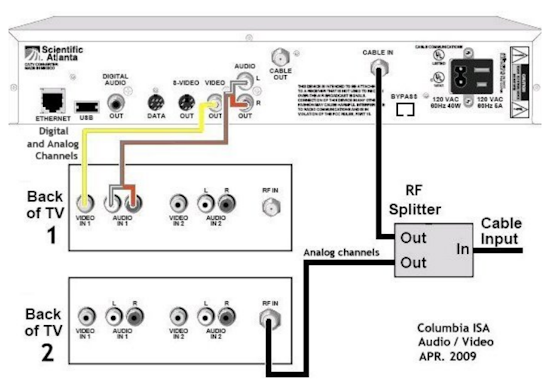

PIP - Picture in a picture TV hookup using splitter




Analog, digital channels

Two TV hookup




PREVIOUS PAGE > Digital Cable box to HDTV
